take home exercise 3

Author

Xu Lin

Published

February 11, 2024

Modified

February 18, 2024

Background

As we know Singapore is situated near the equator and it has a typically tropical climate. It has 2 two monsoon seasons, one is Northeast Monsoon(December to early March); the other is Southwest Monsoon(une to September). In this task, we will choose December to analysis the temperature variation.

Purpose

Daily mean temperatures are projected to increase by 1.4°C to 4.6°C, while annual mean temperatures rose at an average rate of 0.25°C per decade. We want to find out the reasons.

pacman::p_load(tidyverse, ggrepel, patchwork,
               ggthemes, hrbrthemes,
               tidyverse, ggdist, ggridges, colorspace,gridExtra)

Import data

I choose the Changi station, December 1983, 1993, 2003, 2013, 2023’ temperature data by grouping the data manually. R can not read the degree, so I moved it out.

TEMData <- read_csv("data/DEC1983-2023TEM.csv")
glimpse(TEMData)
Rows: 155
Columns: 10
$ Station                     <chr> "Changi", "Changi", "Changi", "Changi", "C…
$ Year                        <dbl> 1983, 1983, 1983, 1983, 1983, 1983, 1983, …
$ Month                       <dbl> 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12…
$ Day                         <dbl> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,…
$ `Daily Rainfall Total (mm)` <dbl> 2.8, 1.7, 5.0, 8.2, 0.0, 0.0, 0.0, 19.8, 4…
$ `Mean Temperature`          <dbl> 26.4, 24.3, 25.1, 25.2, 26.0, 25.0, 25.6, …
$ `Maximum Temperature`       <dbl> 31.0, 27.2, 30.2, 30.3, 29.8, 27.7, 28.8, …
$ `Minimum Temperature`       <dbl> 23.8, 21.9, 23.2, 23.0, 23.0, 23.7, 23.4, …
$ `Mean Wind Speed (km/h)`    <dbl> 9.1, 4.9, 3.1, 3.2, 4.5, 4.4, 4.9, 5.4, 6.…
$ `Max Wind Speed (km/h)`     <dbl> 46.1, 36.4, 41.0, 31.7, 28.8, 32.4, 32.8, …

Data description & Process of thinking.

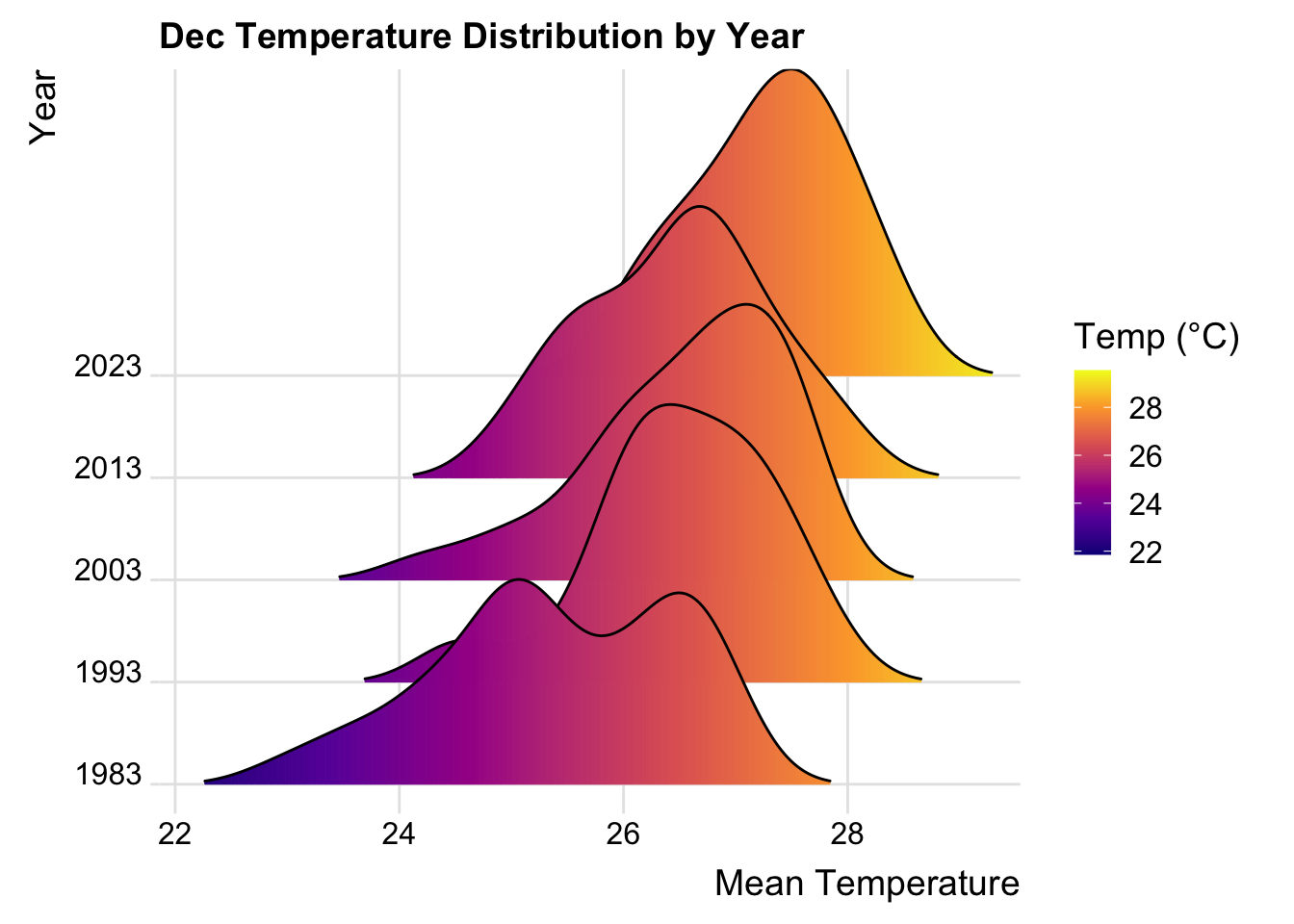

Ridgeline plot(also known as Joyplot) is a method to display the distribution of a numeric value for several groups. We use this method to display the December of 1983, 1993, 2003, 2013, 2023’s daily mean temperature.

ggplot(data = TEMData,
       aes(x = `Mean Temperature`, y = as.factor(Year),
           fill = after_stat(x))) +
    geom_density_ridges_gradient(
    scale = 3,
    rel_min_height = 0.01) +
  scale_fill_viridis_c(name = "Temp (°C)",
                       option = "C") +
  scale_x_continuous(
    name = "Mean Temperature",
    expand = c(0, 0)
  ) +
  scale_y_discrete(
    expand = expansion(add = c(0.2, 2.6))
  ) +
  theme_ridges() +
  labs(title = "Dec Temperature Distribution by Year",
    y = "Year")

ggplot(TEMData,
       aes(x = `Mean Temperature`, y = as.factor(Year),
           fill = 0.5 - abs(0.5-stat(ecdf)))) +
  stat_density_ridges(geom = "density_ridges_gradient",
                      calc_ecdf = TRUE) +
  scale_fill_viridis_c(name = "Tail probability",
                       direction = -1) +
  theme_ridges()+
  labs(title = "Dec Temperature Distribution by Year",
    y = "Year")

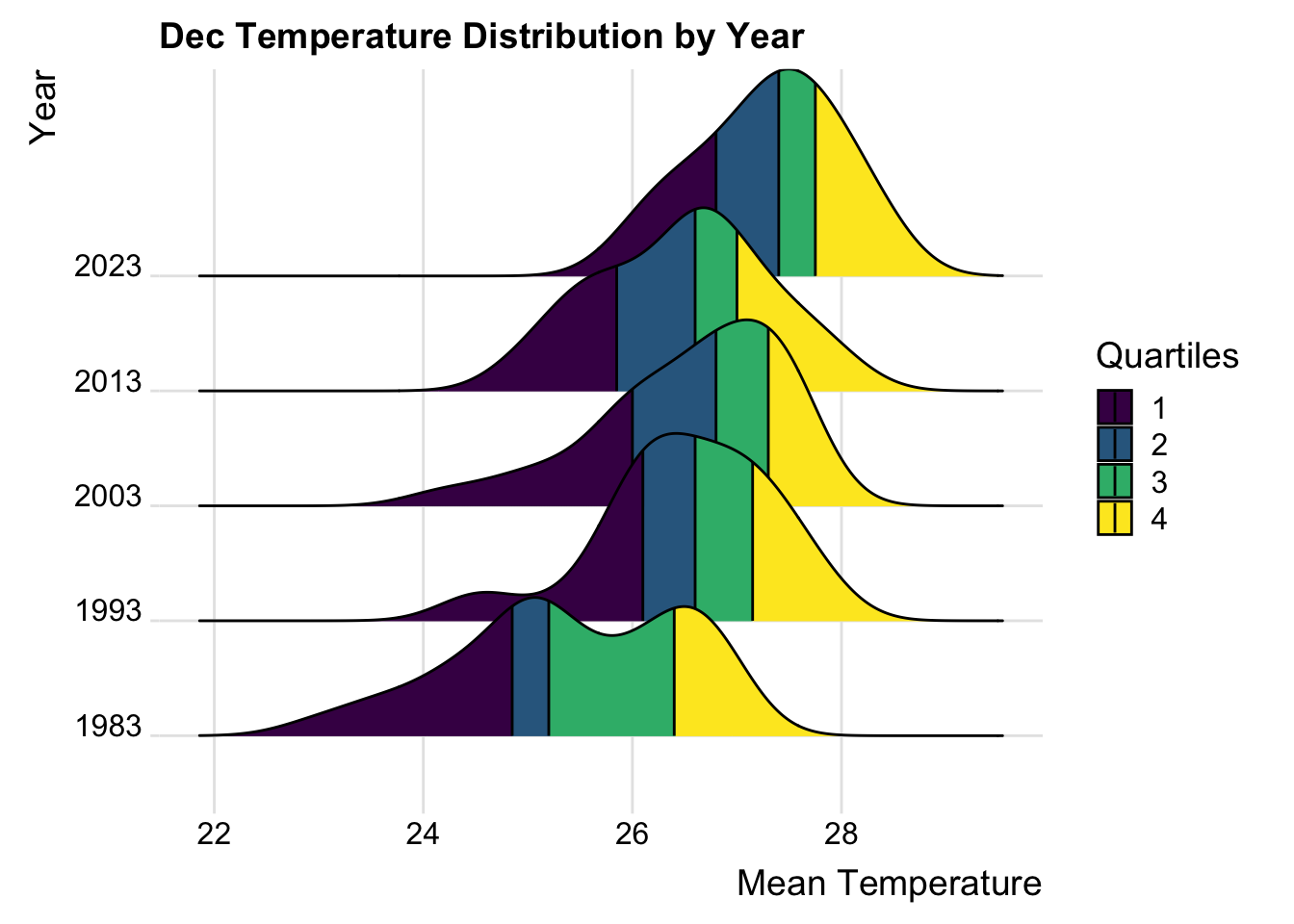

ggplot(TEMData,
       aes(x = `Mean Temperature`, y = as.factor(Year),
           fill = factor(stat(quantile))
           )) +
  stat_density_ridges(
    geom = "density_ridges_gradient",
    calc_ecdf = TRUE,
    quantiles = 4,
    quantile_lines = TRUE) +
  scale_fill_viridis_d(name = "Quartiles") +
  theme_ridges() +
  labs(title = "Dec Temperature Distribution by Year",
    y = "Year")

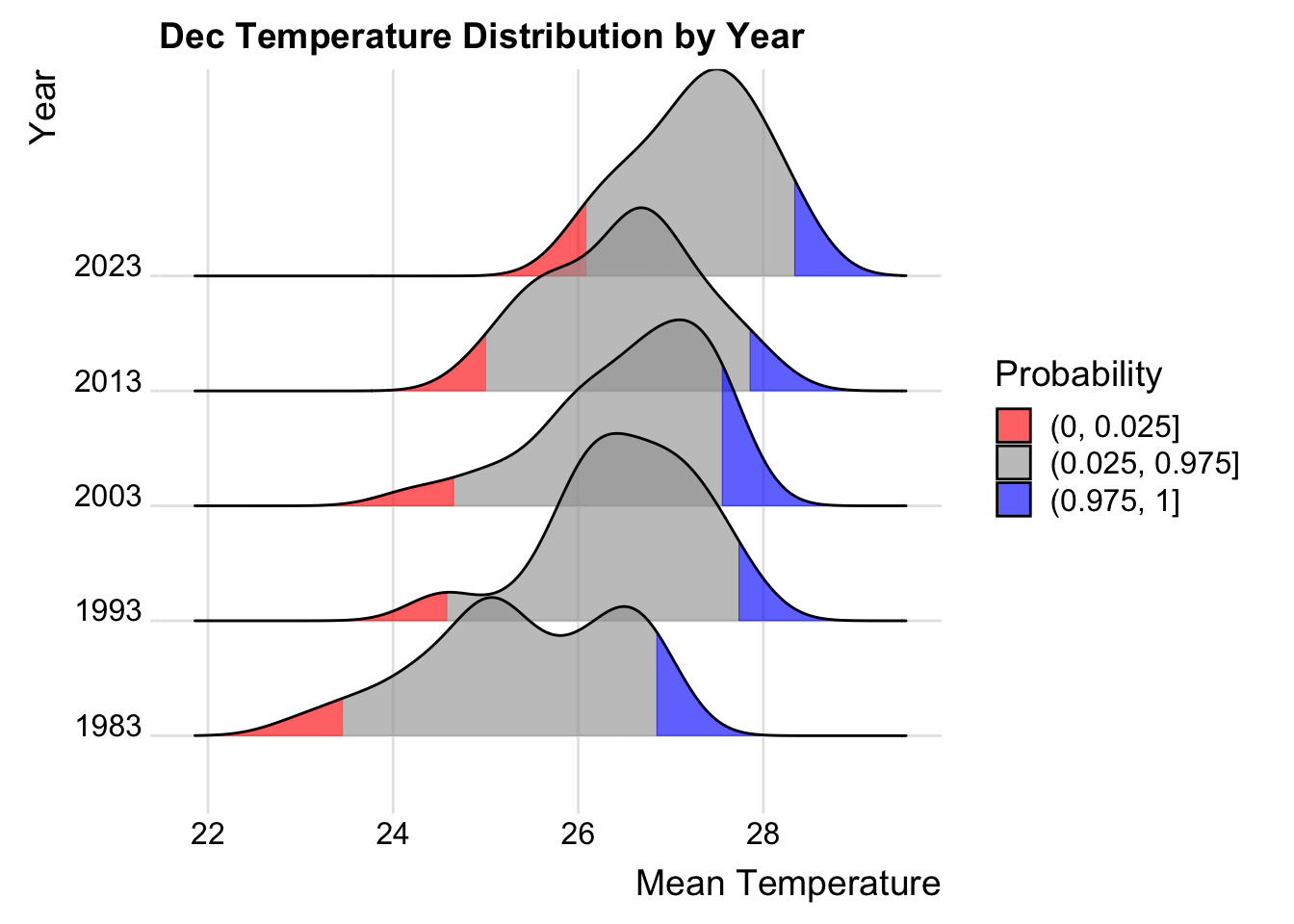

ggplot(TEMData,
       aes(x = `Mean Temperature`, y = as.factor(Year),
           fill = factor(stat(quantile))
           )) +
  stat_density_ridges(
    geom = "density_ridges_gradient",
    calc_ecdf = TRUE,
    quantiles = c(0.025, 0.975)
    ) +
  scale_fill_manual(
    name = "Probability",
    values = c("#FF0000A0", "#A0A0A0A0", "#0000FFA0"),
    labels = c("(0, 0.025]", "(0.025, 0.975]", "(0.975, 1]")
  ) +
  theme_ridges()+
  labs(title = "Dec Temperature Distribution by Year",
    y = "Year")

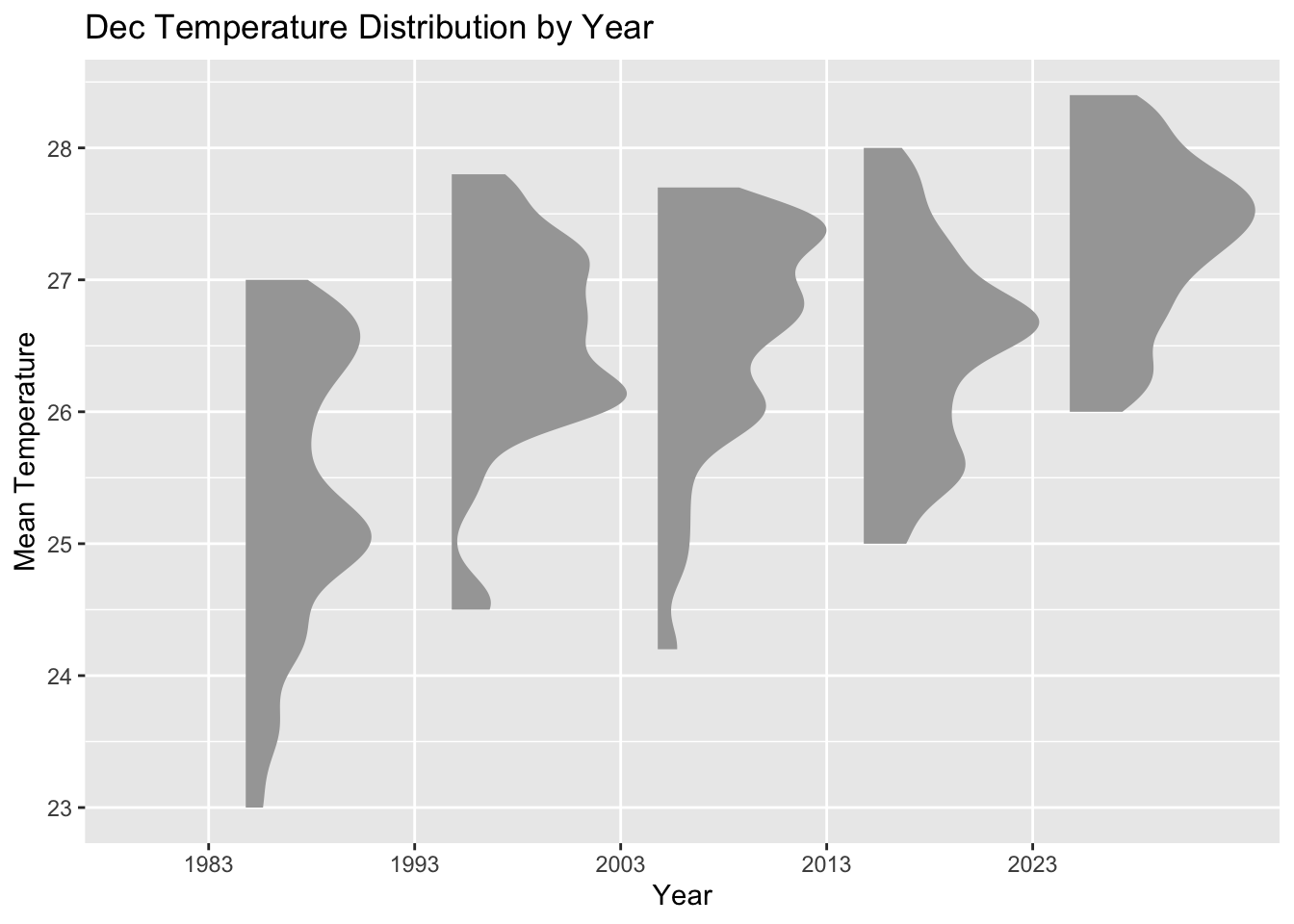

ggplot(TEMData,
       aes(x = as.factor(Year), y = `Mean Temperature`)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  labs(title = "Dec Temperature Distribution by Year",
    x = "Year")

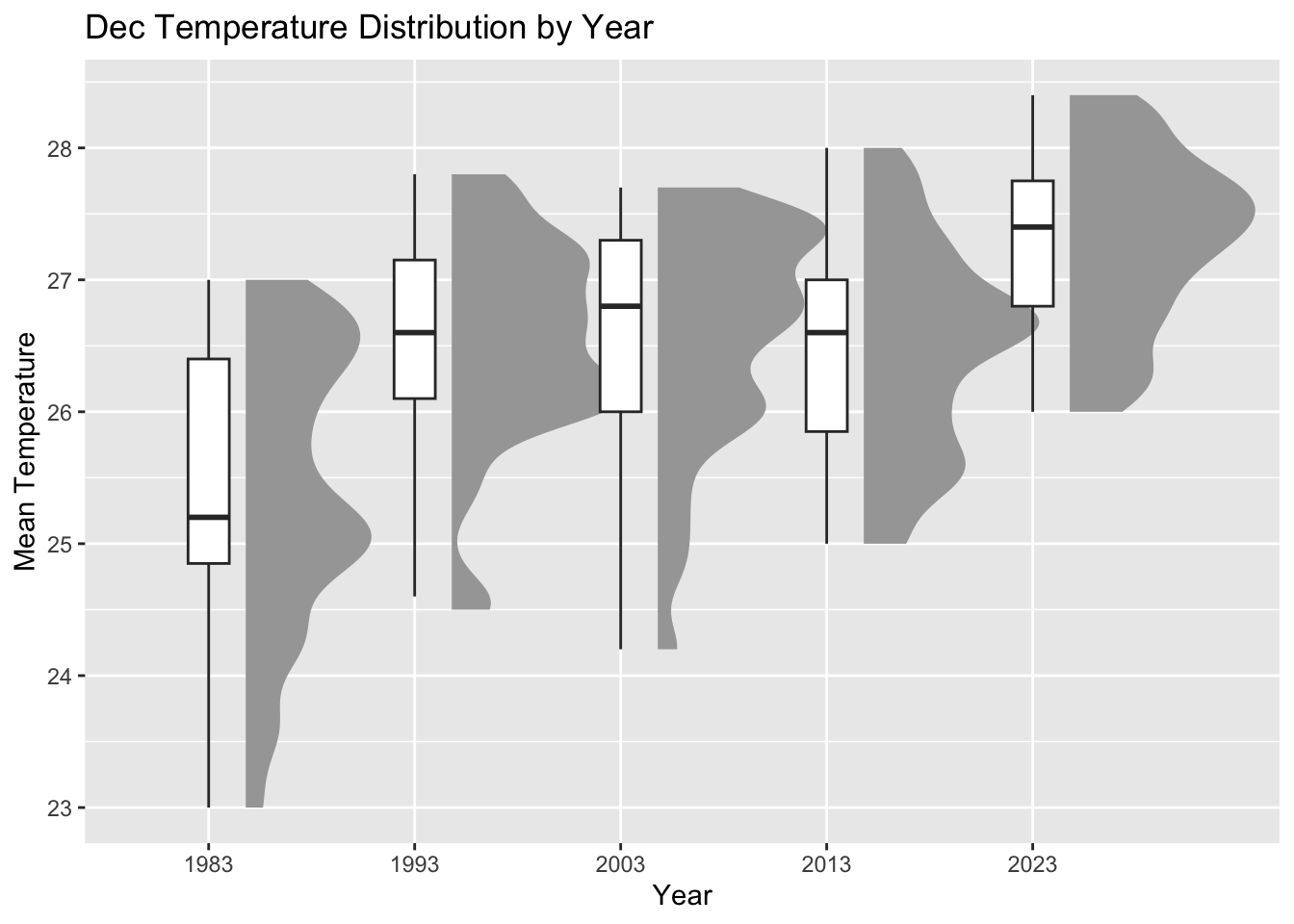

ggplot(TEMData,
       aes(x = as.factor(Year), y = `Mean Temperature`)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  geom_boxplot(width = .20,
               outlier.shape = NA) +
  labs(title = "Dec Temperature Distribution by Year",
    x = "Year")

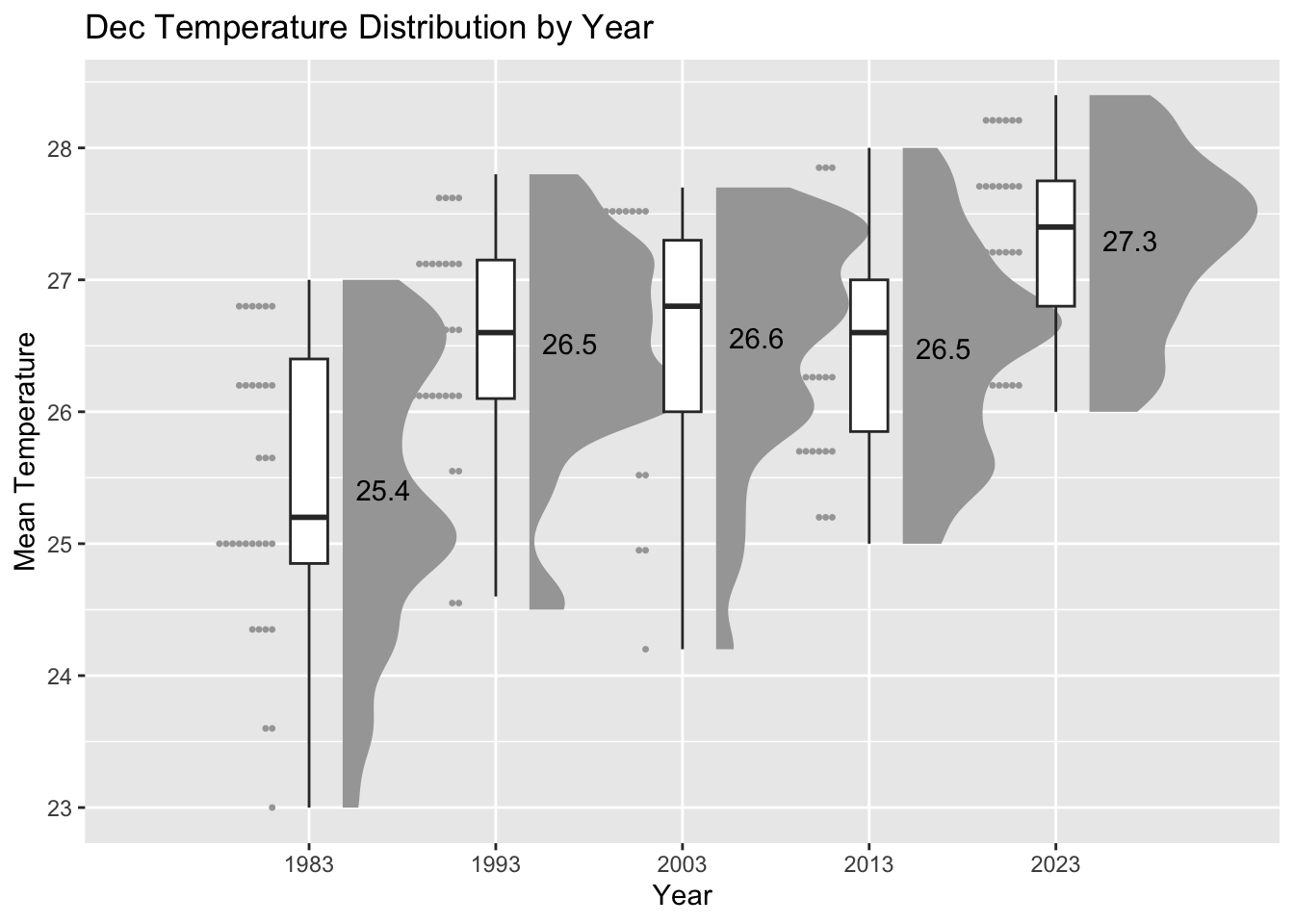

TEMData_means <- TEMData %>%
  group_by(Year) %>%
  summarise(MeanTemp = mean(`Mean Temperature`, na.rm = TRUE)) %>%
  ungroup()
ggplot(TEMData,
       aes(x = as.factor(Year), y = `Mean Temperature`)) +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  geom_boxplot(width = .20,
               outlier.shape = NA) +
  stat_dots(side = "left",
            justification = 1.2,
            binwidth = .5,
            dotsize = 0.1)+
  labs(title = "Dec Temperature Distribution by Year",
    x = "Year") +
  geom_text(data = TEMData_means, aes(label = round(MeanTemp, 1), y = MeanTemp),
          nudge_x = 0.25, hjust = 0, check_overlap = TRUE)

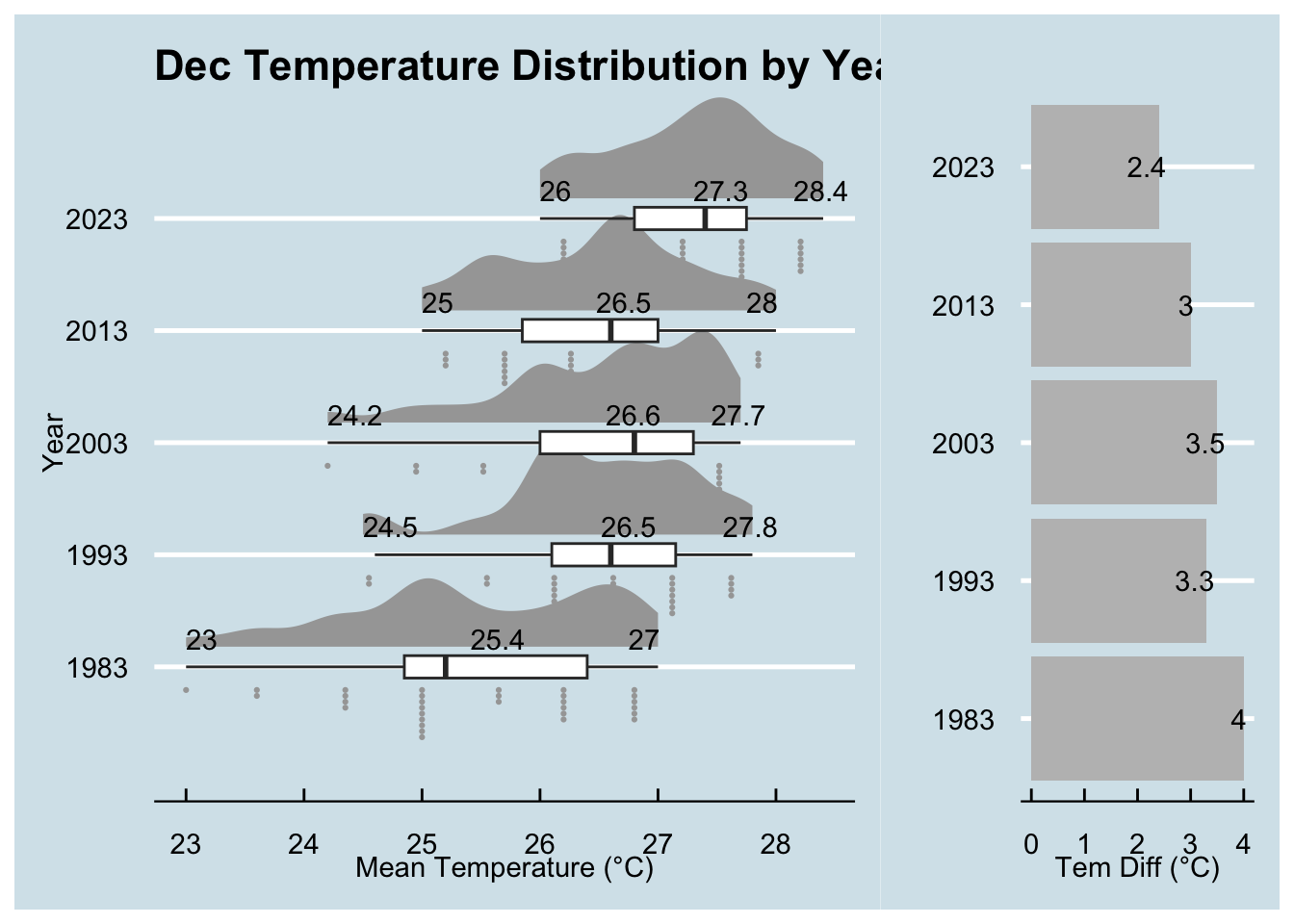

Final result

TEMData_max <- aggregate(`Mean Temperature` ~ Year, data = TEMData, max)
TEMData_min <- aggregate(`Mean Temperature` ~ Year, data = TEMData, min)
p1 <-ggplot(TEMData, aes(x = as.factor(Year), y = `Mean Temperature`)) +
  labs(y = "Mean Temperature (°C)", x = "Year") +
  stat_halfeye(adjust = 0.5,
               justification = -0.2,
               .width = 0,
               point_colour = NA) +
  geom_boxplot(width = .20,
               outlier.shape = NA) +
  stat_dots(side = "left",
            justification = 1.2,
            binwidth = .5,
            dotsize = 0.1) +
  coord_flip() +
  theme_economist() +
  labs(title = "Dec Temperature Distribution by Year",
       x = "Year") +
  geom_text(data = TEMData_means, aes(label = round(MeanTemp, 1), y = MeanTemp),
            nudge_x = 0.25, hjust = 0, check_overlap = TRUE) +
  geom_text(data = TEMData_max, aes(label = `Mean Temperature`, y = `Mean Temperature`),
            nudge_x = 0.25,nudge_y = -0.25, hjust = 0, check_overlap = TRUE) +
  geom_text(data = TEMData_min, aes(label = `Mean Temperature`, y = `Mean Temperature`),
            nudge_x = 0.25, hjust = 0, check_overlap = TRUE)
TEMData_diff <- data.frame(
  Year = TEMData_max$Year,
  Diff = TEMData_max$`Mean Temperature` - TEMData_min$`Mean Temperature`
)
p2 <- ggplot(TEMData_diff, aes(x = as.factor(Year), y = Diff)) +
  geom_bar(stat = "identity", fill = "grey")+
  geom_text(aes(label = Diff), position = position_dodge(width = 0.9), hjust = 0.8) +
  coord_flip() +
  theme_economist() +
  labs(x = "", y = "Tem Diff (°C)")
combined_plot <- p1 + p2 + plot_layout(widths =c(3, 1))
combined_plot

Summary

For this purpose, we want to find out the daily mean temperatures increase by 1.4°C to 4.6°C, while annual mean temperatures rose at an average rate of 0.25°C per decade.

In the chart, you can see the minimal daily mean temperature increase from 25.4°C to 27.3°C from December 1983 to 2023. The trend of minimal daily mean temperature increase from 23°C to 26°C, while the maximal daily mean temperature from 27°C to 28.4°C from the left chart. From the right chart, you can see the daily mean temperature narrow form 4°C to 2.4°C. So we can conclude that the temperature is rising, and the daily temperature range is decreasing, with the rate of change accelerating.
